ECO 30 O(S) C 2

Two Stage Heavy Oil Burners

Optimum fuel / air mixture with special gas nozzle
High pressure, light build fan design
Low noise level due to light and aerodynamic body design made of high quality aluminum
Sliding flange for connection to different boiler types,
Automatic control equipment according to European standard EN-267
Easy access to all equipments without dismounting the burner from the boiler,
High efficiency operation by air flow rate adjustment from both the suction and the gun barrel.
Easy installation and operation
Special-design, compact pre-heater, safety, operating and limiting thermo switches
High pressure mechanical atomization at nozzle
Direct ignition and pilot ignition options. (Pilot ignition is optional for some models.)

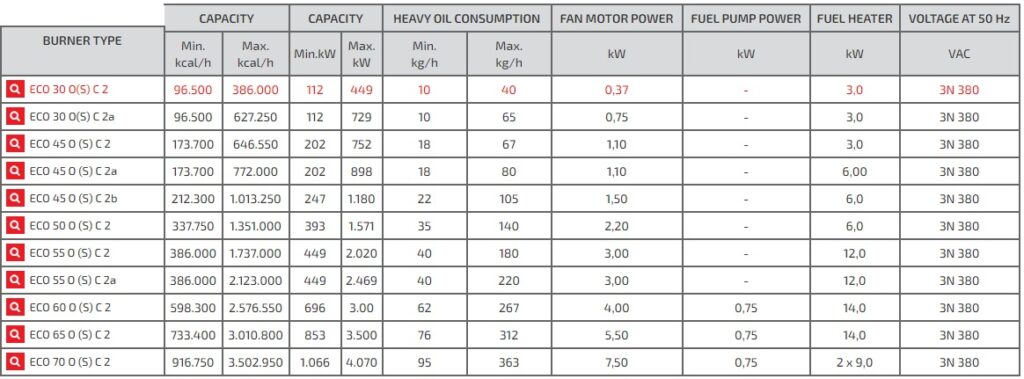

	L	Gmin	Gmax	H	K	B	C	P	M	D	D1
ECO 30 O (S)	880	130	265	550	250	400	305	10	142	130	153
